Pins & Tools: Flange BossTM



Flange Alignment Tools

One of the most common causes of flange leakage is flange alignment problems.  Misalignment often creates improper flange face parallelism.  This results in uneven gasket compression.   Dangerous flange leakage can soon follow.  This may cause personnel injury and significant property damage.  It is totally avoidable with Flange Boss flange alignment tools.

Model            Description     Capacity

FAT12HKM     Hydraulic          12,000 lbs

                   (same as sizes as FAT10KM below)

FAT10KM        Mechanical      10,000 lbs

              ASME  Weld Neck 150  32" - 48"

              ASME  Weld Neck 300  28" - 48"

              ASME  Weld Neck 400  26" - 48"

              ASME  Weld Neck 600  22" - 48"

              ASME  Weld Neck 900  16" - 30"

              ASME  Weld Neck 1500 10" - 20"

              ASME  Weld Neck 2500   5" - 12"



FAT8KM          Mechanical        8,000 lbs

              ASME Weld Neck 150 10" - 14"

              ASME Weld Neck 300   8" - 14"

              ASME Weld Neck 400  3 1/2" - 10"

              ASME Weld Neck 600  3 1/2" - 8"

              ASME Weld Neck 900 1" - 6"

              ASME Weld Neck 1500 1 1/4" - 3"

              ASME Weld Neck 2500 1" - 2"

FAT2KM          Mechanical        2,000 lbs

             ASME Weld Neck 150 2" - 8"

             ASME Weld Neck 300 1 1/2" - 6"

             ASME Weld Neck 400 2" - 3"

             ASME Weld Neck 600 1 1/2" - 3"

             ASME Weld Neck 900 1/2" - 3/4"

             ASME Weld Neck 1500 1/2" - 1"

             ASME Weld Neck 2500 1/2" - 3/4"

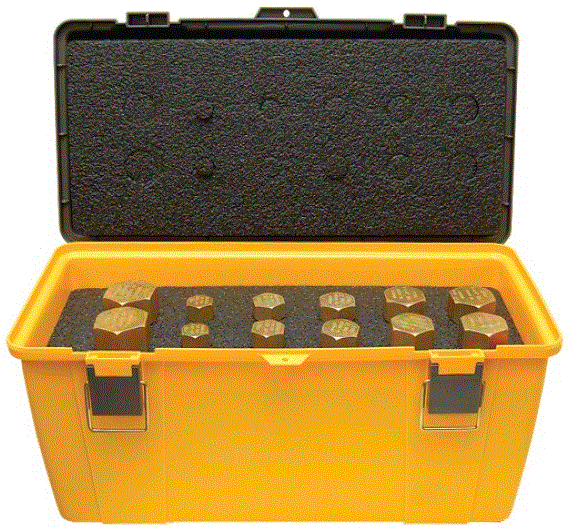

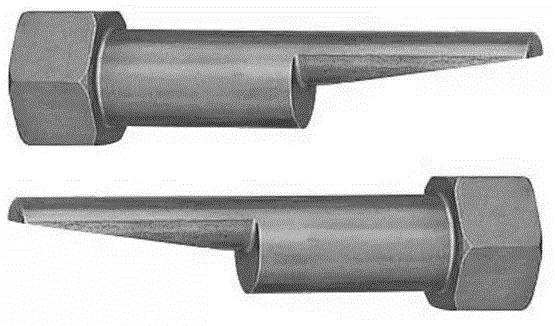

Flange Alignment Pin Sets Include

Kit              Contents                   Wt.

Each Kit contains a pair of sizes from chart below



FTS24       FT02, FT03, FT04     8-1/8 lbs.

FTS26       FT02, FT03, FT04, FT06     11 lbs.

FTS28       FT02, FT03, FT04, FT06, FT08     15 lbs.

FTS212     FT02, FT03, FT04, FT06, FT08, FT1012     20-1/2 lbs.

FTS1426   FT14, FT16, FT1820, FT2426     47 lbs.

EXTRA LONG

FTS24L     FT02L, FT03L, FT04L     12-3/4 lbs.

FTS26L     FT02L, FT03L, FT04L, FT06L     17-1/4 lbs.

FTS28L     FT02L, FT03L, FT04L, FT06L, FT08L     20-1/8 lbs.

FTS212L   FT02L, FT03L, FT04L, FT06L, FT08L, FT1012L  31 lbs.

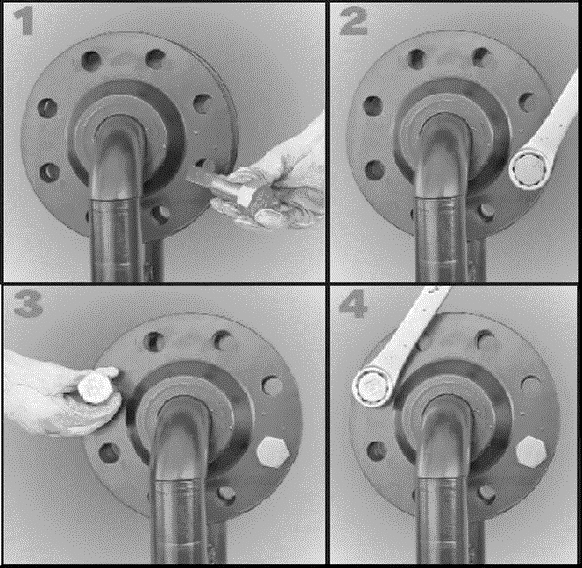

Flange Alignment

Flange Alignment
